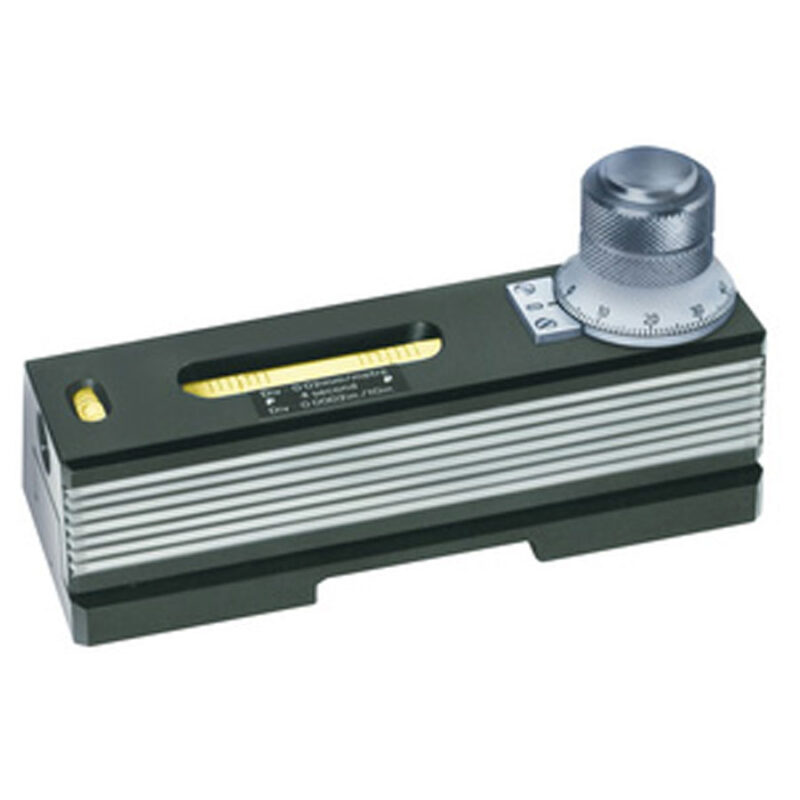

TESA Precision Spirit Level With Micrometric Adjustment

Description

Precision spirit level with micrometer adjustment.

For the measurement of inclinations from -20 to +4 mm/m.

Instrument features:

+ 1 micrometer rotation = +2 mm/m (100 divisions of 0,02 mm/m )

+ 2 micrometer rotations = +4 mm/m

-10 micrometer rotations = -20 mm/m

Prismatic measuring face (shafts Ø 19 to 120 mm).

Accuracy 0,02 mm/m

Specification

• Standard: DIN 877
• Maximum permissible errors: DIN 2276/1
• Material: Hardened and ground steel
• Particular characteristic: Fioles longitudinale et transversale
