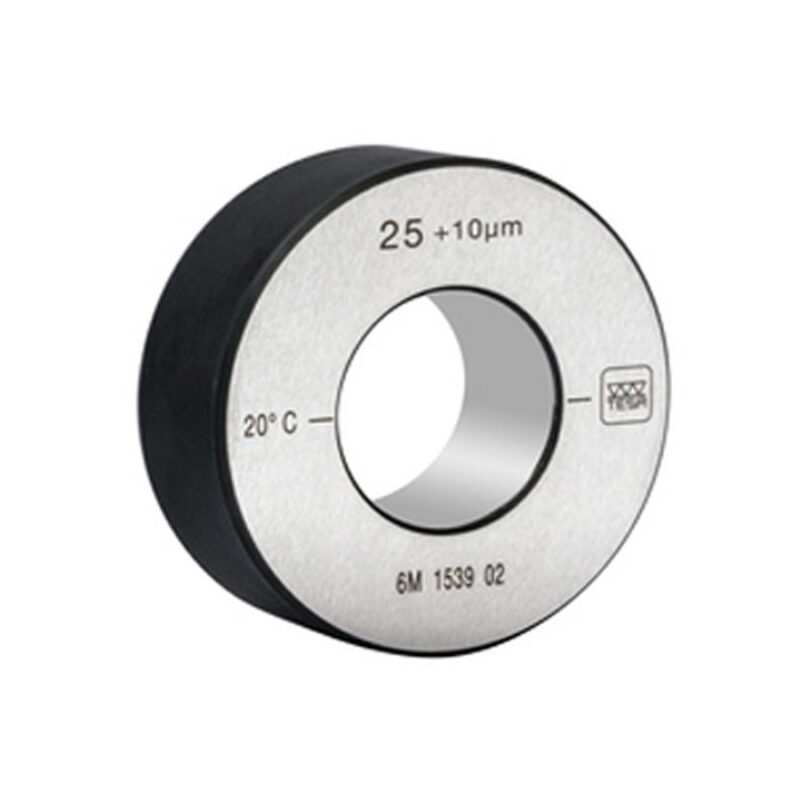

Setting Rings, Metric

Specification

• Maximum permissible errors: The cylindricity errors make no allowance for a rim of 1 mm.
• Particular characteristic: All listed values are determined through a 2-point measurement taken at half-height of the setting ring. The measuring direction is marked with 2 strokes. The measured actual dimension is engraved on every setting master.
