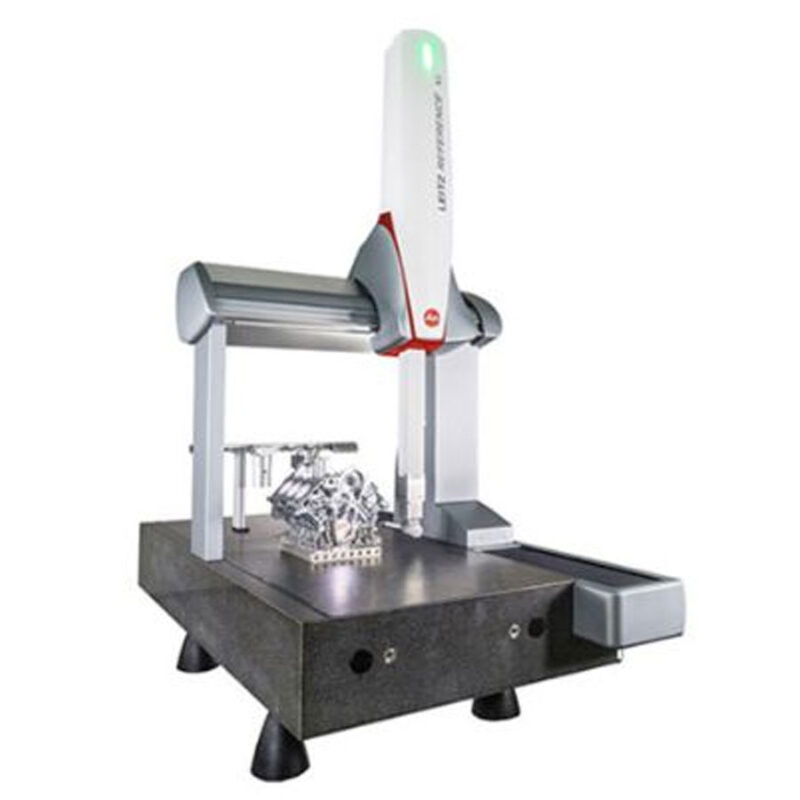

Leitz Reference XI

Description

The Leitz Reference Xi series of ultra-high accuracy coordinate measuring machines (CMMs) from Hexagon Manufacturing Intelligence are optimised for flexibility.

These ultra-high accuracy machines are available with optional sophisticated temperature compensation features including the XT option extended temperature range of 15 °C to 35 °C, complete with protective bellow covers, and the PULSE environmental monitoring system, offering the ability to operate the machine outside a temperature-controlled environment.

Leitz Reference Xi CMMs offer unparalleled flexibility with a wide range of probe head options from the HP-S-X1 coupled with the HH-A-T2.5 or HH-A-T5 continuous wrist, to the HP-S-X3C fixed measurement head, up to the HP-S-X5-HD designed for use with extra-long stylus extensions or heavy styli clusters.

The accuracy is there in every situation – whether measuring with indexing or fixed probe heads. With a multi-sensor controller, the Leitz Reference Xi series is also well equipped for the integration of optical sensors.

Features

Leitz PMM-G gear inspection systems provide several advantages compared to a conventional single purpose gear tester:

• Ceramic Ram
  Selected sizes of the Leitz Reference HP are equipped with a ceramic Z-ram to maximise robustness and stiffness. It is the ideal construction to achieve the optimal measuring performance required by a wide range of modern applications.
• Future Ready
  SThe Future Ready concept optimises the CMM for the SENMATION intelligent sensor automation system upgrade. The universal pre-cabling enables a simple integration process at any time, allowing for flexible application changes without costly downtime.
• TRICISION™
  A moving bridge with triangular profile provides optimum stiff-to-mass ratio for unquestioned precision and long-term stability.
• Status Messaging Lights
  The Status Message Light kit integrates LED alert lights into the CMM so you can check machine status at a glance, even at a distance. This means the CMM can be left to measure, allowing you to optimise time and resource management
• High-Resolution Steel Scales
  High-quality steel scales and automatic temperature compensation reduce the effect of temperature fluctuations on the measurement process.
• Rotary Tables
  As an integrated or on-top version, rotary tables up to a diameter of 600 mm and a maximum table load of 550 kg can be used for 4-axis scanning and component positioning.
• Temperature Sensor
  An optional exchangeable temperature sensor for the LSP-S2 Scan+ and the HP-S-X5 HD enables automatic part-temperature measurement at the workpiece (integrated in the measurement program).
• XT Option
  The XT option enables accurate and reliable measurement in the expanded temperature range of 15 °C to 30 °C on selected Leitz Reference HP machine models, which is indispensable in environments where temperature conditions are not controlled.
