AtlaScan - Multi-mode, Versatile, Metrology-Grade 3D Scanner

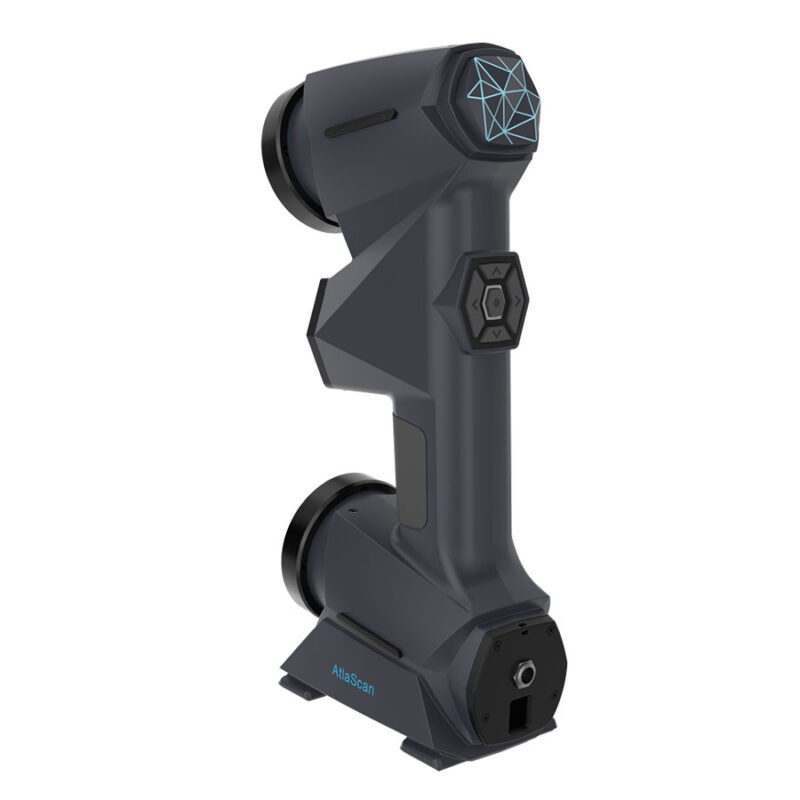

AtlaScan 3D laser scanner is a ZG's revolutionary product. In addition to all the advantages of similar products on the market, the most outstanding feature is that ZG has greatly upgraded the hardware and software performance, empowering AtlaScan a large scanning range and super fast scanning efficiency, high scanning accuracy and resolution, and wide material adaptability which helps users to complete work quickly and well in the face of various complex application Scenarios.

Product Features

• Powerful Measurement Functionality
  The first hole flash capture function 3D laser scanner in the world; Easy hole measurement with innovative hole measurement accessories; Rich and powerful measurement and inspection function to create different features within ZG own software.
• Highly Scanning Efficiency
  Larger scanning area up to 600×550mm; Three scanning modes with total 41 laser lines; More efficiency, scanning speed up to 3,000,000 measurements/s.
• Amazing Adaptability
  Intelligent guidance module to handle different surfaces easily; Smart HDR under dual exposure modes to scan black and white at the same time; Higher volumetric accuracy to enhance the adaptability.
• Ultra-fine Details Scanning
  Mesh resolution up to 0.01mm; Powerful mesh optimization to present true details; Local resolution adjustment to offer more details with optimized data size; 14 laser liners for quick ultra-fine details scanning; Rendering and details optimization display at real time.

Application Case

AEROSPACE
Rapid prototyping, quality control/inspection, (MRO）wear and tear analysis, aerodynamics, stress analysis, OEM and parts recycling, reverse engineering.

HEAVY INDUSTRY
Guality control, reverse engineering MRO and wear analysis, mechanical/tooling design and modification, OEM and parts recycling, tooling and mold modification.

AUTOMOTIVE
Reverse engineering, competitive product analysis, automotive repacking, interior customization, modeling and design, finite element analysis(FEA).

MOLD
Virtual assembly, reverse engineering, quality control, wear and tear analysis, custom repairs and modification.

CASTING PARTS
Rough part quality control and inspection, machining processing design.

CONSUMABLE
Modeling and design inspection, reverse engineering, tooling design, VR AR.

CULTURAL
Cultural relic art sculpture.

MEDICAL
Orthosis/prosthesis design and manufacture, wound monitoring, biological specimen.
