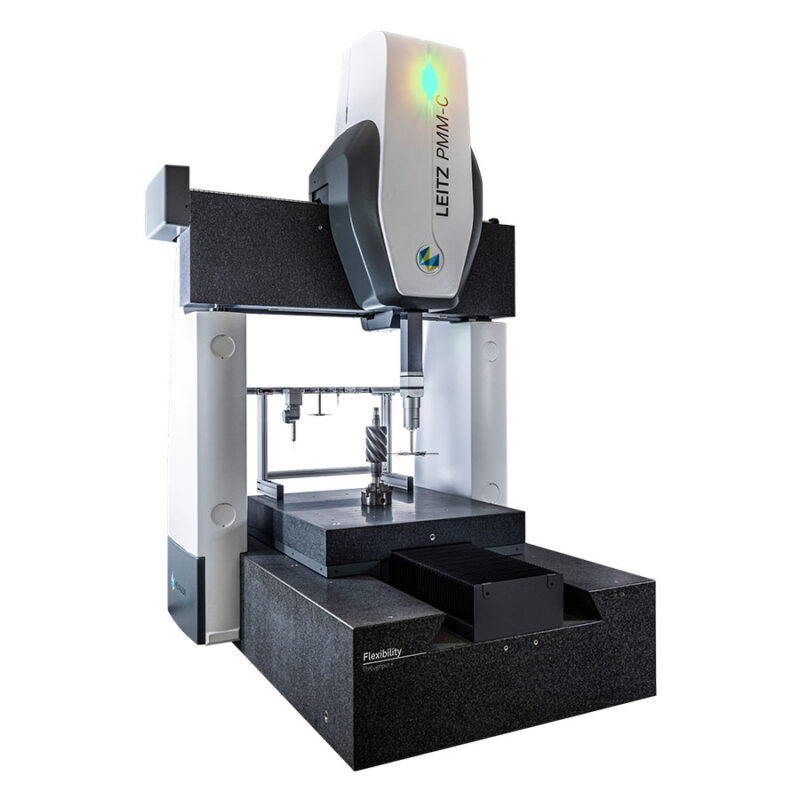

Leitz PMM-C

Description

The Leitz PMM-C line combines highly accurate 3D metrology performance with well-proven gear measurement capabilities. These coordinate measuring machines (CMMs) can be equipped with tactile probes for maximized scanning accuracy and a variety of optical sensors for non-contact measurements.

Every detail of the Leitz PMM-C series is focused on achieving certainty with accurate information users can trust. Leitz PMM-C series measuring machines can also be used as gear measuring systems, enabling fast and ultra-precise inspection of any kind of gears, up to a diameter of 1 550 mm. Gear cutting tools such as hob cutters, broaches, shaper cutters and shaving gears can be measured easily.

Features

• Closed-Frame Design
  The granite base with a fixed portal of cast iron and a granite crossbeam ensures long-term stability. The high stiffness of the measurement axes is designed to ensure consistent accuracy over the entire measurement volume.
• Moving Table
  The traveling measuring table on pre-loaded air bearings with centrally-positioned spindle drive ensures constant dimensional relationships and efficient movement sequences with no tilting or twisting.
• Best Reproducibility
  High-resolution scales offer the highest reproducibility of measurement results.
• High Stability
  The active pneumatic damping system ensures stable measurement procedures, eliminating the influence of vibrations.
